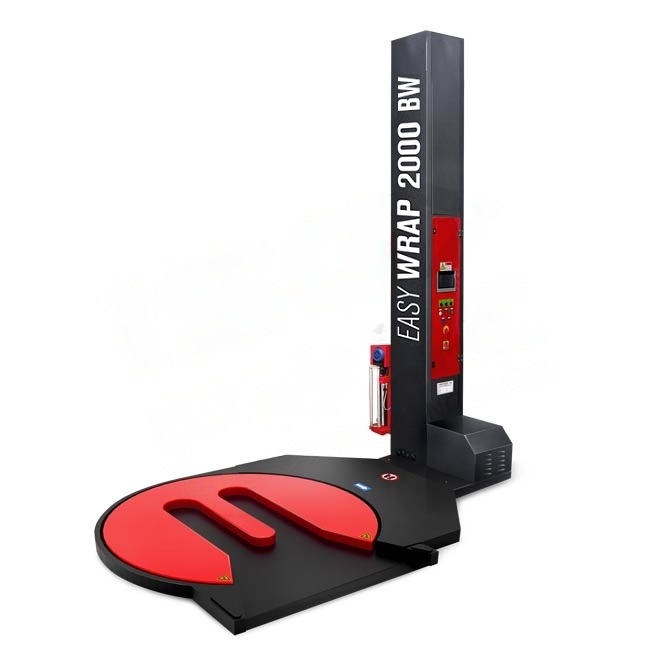

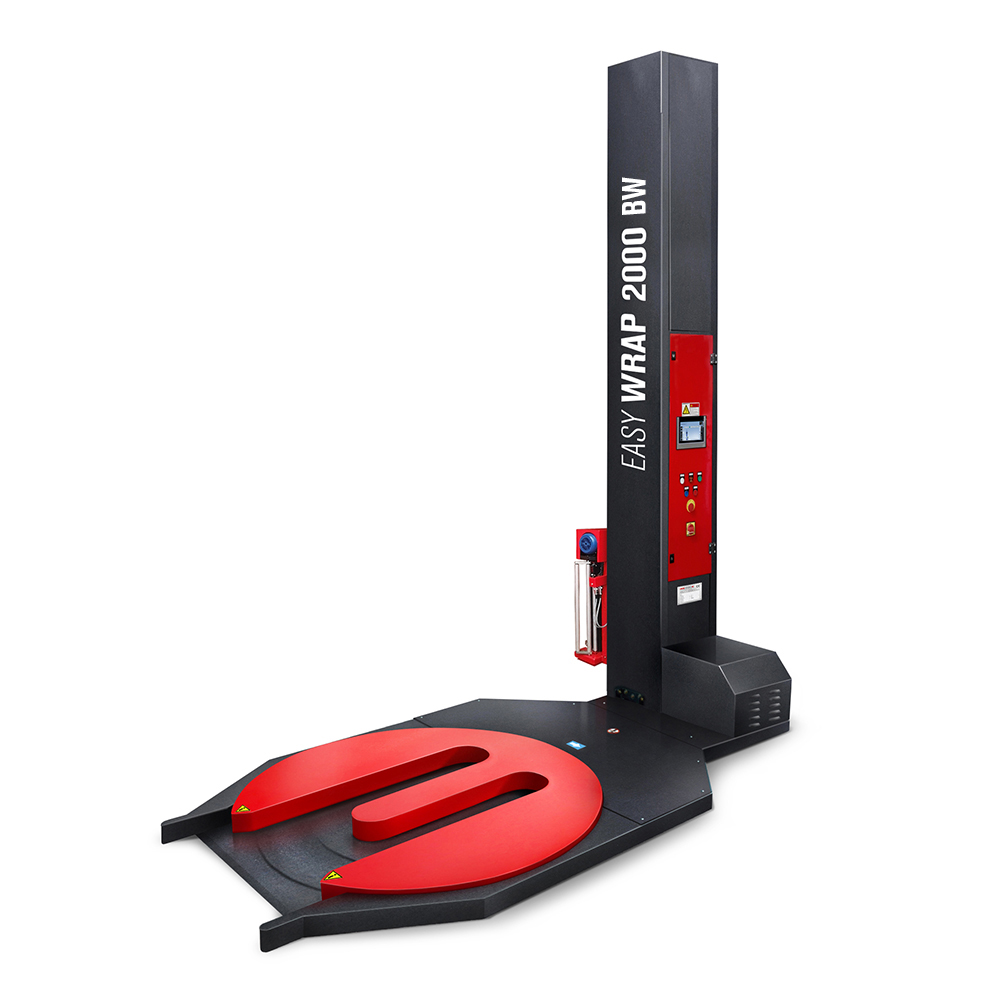

Stretch wrapping machine Easy Wrap 2000 BW

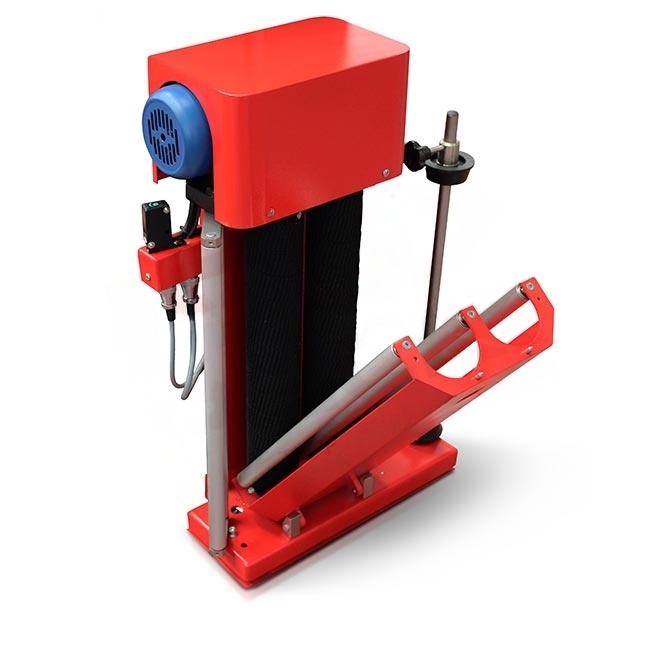

The semi-automatic pallet wrapper Easy Wrap 2000 BW is a machine designed for the wrapping of palletized loads open turntable. Equipped with motorized pre stretch with fixed ratios and 7.2 "color touch screen control panel.
Semiautomatic wrapping machine with pre stretch 250% and open turntable
Model Easy Wrap 2000 BW is a semi-automatic machine for stretch-film wrapping of palletized loads: with entry for transpallet for the easy loading of products with pallet track, the possibility to adjust the film tension by motorized pre stretch, soft starting of the turntable by inverter, manual or automatic working cycle, the possibility to adjust the number of upward and downward rounds of the pallet. The machine is equipped with PLC and digital color display 7,2”. Machine hac automatic cutting system at the end of wrapping cycle.
- Machine dimensions L 2925 x W 1750 x H 2400 mm
- Weight machine 600 Kg
- Turntable diameter 1650 mm
- Max product weight 1500 Kg
- Turntable speed 0 – 12 (rpm)
- Carriage up-down speed 1,4 – 4 (m/min)
- Film pre-stretch 250%, 300%
- Maximum pallet dimensions L 1000 x W 1200 x H 2100 mm
- Power supply 220 Volt 1Ph
- Power supply frequency 50/60 Hz
- Installed power 1,25 Kw
- Max dimension film roll H 500 mm Ø 280 mm
- Film roll max weight 18Kg
- Film roll thickness 12 – 35 (µm)
- Photoeye to detect door height std
- Forklifting Back
